LaserMag

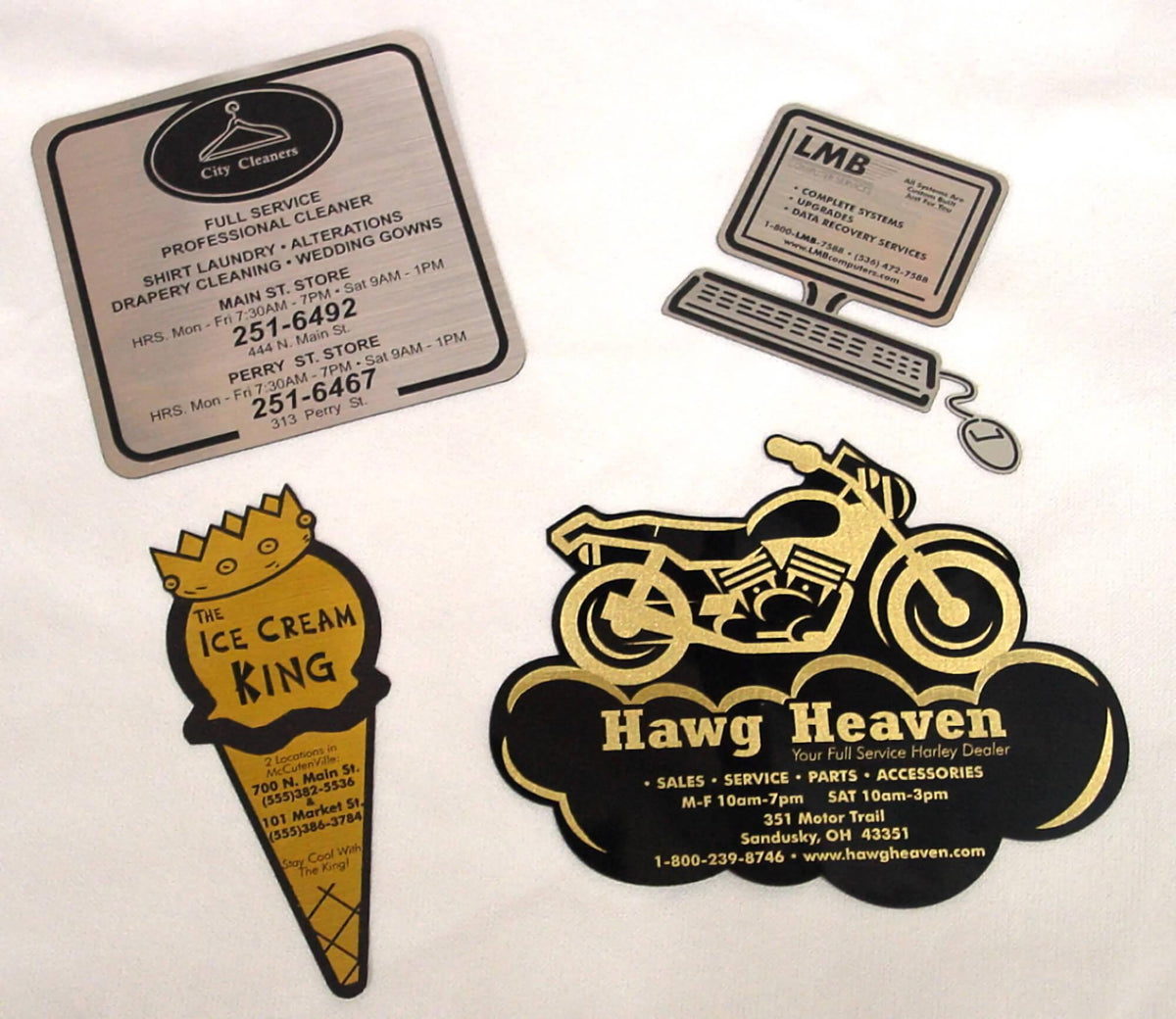

LASERmag laser engraves and cuts easily to create beautiful metallic magnets in any shape and size for promotional magnets. LASERmag promises to open exciting new markets and applications to laser engraving.
Main Specifications
Material: Microsurfaced Flexible Magnet
Finish: High Gloss, Brushed
Sheet Size: 305mm x 610mm
Engraving Depth: 0.10mm
Usage:
Promotional Magnets
Repositionable Nameplates
Capabilities:
Scores
Laser Vector Cuts
UV Stable
Outdoor Weatherable
Shears
Permits Fine Engraving
Ink Prints
LASERMAG BRUSHED GOLD/BLACK MAGNETIC SHEET
Choosing the Adhesive options
3M467
Temporarily repositionable with a 0.06mm/2.3mil adhesive that will provides outstanding adhesion to metal and high surface energy plastics, with high resistance to solvents and humidity.
3M468
0.13mm/5.2mil adhesive providing outstanding adhesion to metal and high surface energy plastics. High resistance to solvents excellent shear strength, temperature and chemical resistance.
External/Internal - Temperature resistance short term 204C, long term 149C.
TESA 60985
Is an aggressive translucent double-sided, high tack acrylic non-woven tissue tape, ideal for bonding to low surface energy materials such as plastic and metal nameplates. Used to bond fabrics, cardboard, plastics, name plates and for a wide range of mounting applications. Adhesive total thickness 170um
TESA 88125
External/Internal - High shear strengths with Temperature resistance range of -40C up to 200C. A conformable, transparent, water based acrylic transfer tape, with a high temperature and high shear performance. Adhesive thickness 63um with linear thickness of 106um Developed for lamination with 30min repositionable application – First-rate for Signage and Plaque positioning
TESA 88150
External/Internal - High shear strength with Temperature resistance range of -40C up to 200C. A conformable, transparent, water based acrylic transfer tape, with a high temperature and high shear performance. Including NVH (noise, vibration, harshness), materials rubber gaskets, plastics vinyl labels and tags application. Adhesive thickness 127um with linear thickness of 106um developed for lamination and converting applications.
LASERMAG BLACK/GOLD MAGNETIC SHEET
Choosing the Adhesive options
3M467
Temporarily repositionable with a 0.06mm/2.3mil adhesive that will provides outstanding adhesion to metal and high surface energy plastics, with high resistance to solvents and humidity.
3M468
0.13mm/5.2mil adhesive providing outstanding adhesion to metal and high surface energy plastics. High resistance to solvents excellent shear strength, temperature and chemical resistance.
External/Internal - Temperature resistance short term 204C, long term 149C.
TESA 60985
Is an aggressive translucent double-sided, high tack acrylic non-woven tissue tape, ideal for bonding to low surface energy materials such as plastic and metal nameplates. Used to bond fabrics, cardboard, plastics, name plates and for a wide range of mounting applications. Adhesive total thickness 170um
TESA 88125
External/Internal - High shear strengths with Temperature resistance range of -40C up to 200C. A conformable, transparent, water based acrylic transfer tape, with a high temperature and high shear performance. Adhesive thickness 63um with linear thickness of 106um Developed for lamination with 30min repositionable application – First-rate for Signage and Plaque positioning
TESA 88150
External/Internal - High shear strength with Temperature resistance range of -40C up to 200C. A conformable, transparent, water based acrylic transfer tape, with a high temperature and high shear performance. Including NVH (noise, vibration, harshness), materials rubber gaskets, plastics vinyl labels and tags application. Adhesive thickness 127um with linear thickness of 106um developed for lamination and converting applications.
